 908 Series Needle Valve


Product Description

Standard Features:

  • Thread Connection:
    ASME B1.20.1 (NPT)
    DIN 2999 & BS 21
    ISO 228/1 & ISO 7/1

  • Maximum Working Pressure: 6000 PSI

  • PTFE Packing

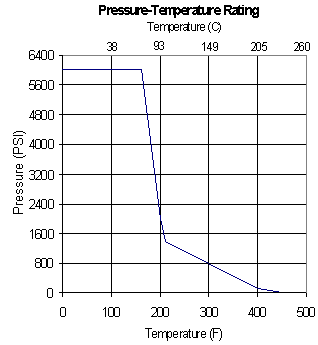

Pressure & Temperature Chart

908 Series Needle Valve Pressure and Temperature Chart

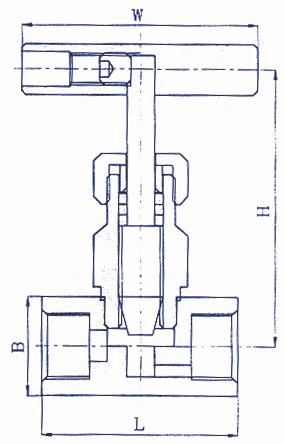

Schematic Diagram

908 Series Needle Valve Schematic Diagram


Materials & Measurements

Materials List

Name Standard Materials
Body AISI 316
Bonnet AISI 316
Gland Nut AISI 316
Gland AISI 316
Stem AISI 316
Handle AISI 410
Packing PTFE

DIMENSIONS (Inches)

Size B L H(open) W
1/4" 0.87 1.77 3.15 2.36
3/8" 0.98 1.97 3.35 2.36
1/2" 1.18 2.36 4.33 2.56
3/4" 1.38 2.56 4.53 2.56
1" 1.81 3.27 5.08 3.15

Due to continuous product development, information may change without notice.
