Product Description

Features and Benefits:

  • Balanced 4-Seat Construction
    Unlike 2-seated diverter valves, the 514 series has 4 seats for positive shut-off.  This true multiport function can reduce the number of valves required in a process system and gives engineers greater design flexibility

  • Dual Pattern ISO 5211 Direct Mount Pad
    No bracket or drive coupling needed for automation
    Eliminates exposed moving parts for safer work environment
    Direct drive eliminates play and improves actuator positioning
    Dual pattern pad fits a wide range of actuator sizes

  • High-Cycle, Live Loaded Stem Packing
    Ensures tight seal
    Extends service life

  • O-ring Stem Bearing
    Maintains stem alignment
    Reduces packing side loading and wear
    Enhances stem seal

  • Blow-Out-Proof Stem
    Stem is bottom loaded to prevent removal when valve is in service

  • Full Port Design
    Full port construction improves flow characteristics for greater process efficiencies

  • 4-Position Lever Handle
    The lever handle can be positioned in any of 4 orientations for maximum piping flexibility

  • Locking Device
    Enables plant personnel to secure valve in open or closed position when manually operated

The 514F is a true 3-way ball valve with balanced 4-seat construction.  It is available in full port with "L" and "T" flow configurations.  Our unique dual pattern ISO 5211 mounting pad facilitates direct mounting of pneumatic and electric actuators.

Operating / Test Conditions:

  • Temperature Range (RTFE): -20° to 420° F

  • Maximum Working Pressure (RTFE):
    1000 PSI (1/4" - 1")
    800 PSI (1 1/4" - 2")

  • All valves shell and seat tested to ANSI/ASME B16.34 and API 598

  • All materials comply with applicable ASTM material specifications

  • End connections: NPT to B1.20.1

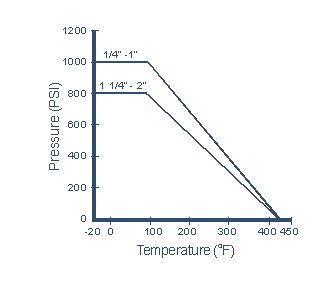

Pressure & Temperature Chart

(RTFE Seats)


Schematic Diagram


Materials & Measurements

Materials List

Item
Part Name
Material
Qty
1
Body A351 Gr. CF8M 1
2
End Cap (Small) A351 Gr. CF8M 2
3
Ball 316SS 1
4
Stem 316SS 1
5
Seat RTFE (15% C.F.) 4
6
Body Seal (Small) PTFE 2
7
End Cap (Large) A351 Gr. CF8M 1
8
Body Seal (Large) PTFE 1
9
Thrust Washer PEEK 1
10
Stem O-ring Viton 90 1
11
Stem Packing Set PTFE 1
12
Packing Gland 304SS 1
13
Belleville Washer 301SS 2
14 Gland Nut 304SS 1
15 Gland Nut Lock Washer 304SS 1
16 Stem Spacer 304SS 2
17 Stop Plate 304SS 1
18 Positioning Pin 304SS 1
19 Handle 304SS 1
20 Handle Nut 304SS 1
21 Handle Cover Vinyl 1

DIMENSIONS (Inches)

Size
L
L1 P M H h D1 d1 D2 d2 S ISO 5211 Pattern Weight (lbs)
514F
1/4 2.71 1.35 0.47 5.80 1.50 0.36 1.42 0.24 1.65 0.24 0.354 F03/F04* 1.5
3/8 2.71 1.35 0.47 5.80 1.50 0.36 1.42 0.24 1.65 0.24 0.354 F03/F04* 1.5
1/2 3.14 1.57 0.59 5.80 1.60 0.36 1.42 0.24 1.65 0.24 0.354 F03/F04* 2.0
3/4 3.77 1.89 0.79 6.50 1.91 0.51 1.65 0.24 1.97 0.28 0.433 F04/F05* 3.0
1 4.37 2.18 1.00 7.70 2.14 0.51 1.65 0.24 1.97 0.28 0.433 F04/F05* 4.5
1 1/4 4.80 2.40 1.25 9.85 2.48 0.63 1.97 0.28 2.76 0.37 0.551 F05/F07* 7.0
1 1/2 5.67 2.84 1.50 9.85 2.89 0.63 1.97 0.28 2.76 0.37 0.551 F05/F07* 11.0
2 6.68 3.34 2.00 12.30 3.63 0.87 2.76 0.37 4.02 0.45 0.669 F07/F10* 20.0

*Direct mount with stem adapter bushing

Due to continuous product development, information may change without notice.
