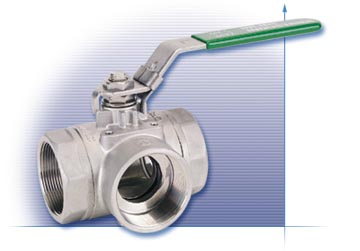

502S-SE Series

Product Description

Schematic Diagram

Materials and Measurements

Click here for a full cut sheet
(PDF format)

Adobe Download Link


Product Description

Standard Features:

  • 1/2" - 2"

  • Port configuration diverts flow
    from one outlet to another
  • Live-loaded stem packing
  • Blow-out-proof stem
  • Corrosion-resistant stainless steel construction
  • Investment cast
  • Actuator mounting pad
  • Locking device

Benefits:

  • Replaces two 2-way valves in diverting applications
  • Low torque reduces actuation costs

Operating / Test Conditions:

  • Operating Temperature Range:
    -40� to 450� F

  • Maximum Working Pressure: 1000 PSI CWP

  • Shell test: 1500 PSI
  • 100% air tested under water at 80 PSI
  • End Type: Threaded

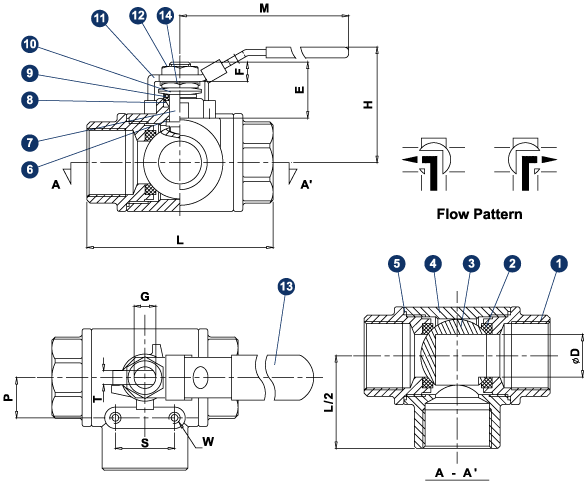

Schematic Diagram

502S-SE Series Schematic Diagram

Materials & Measurements

Materials List

Item
Part Name
Qty
 Material
Option
1
 End Cap 2 A351 Gr. CF8M CF8, WCB
2
 Seat 2 PTFE + 15% G.F. -
3
 Ball 1 SS316 SS304
4
 Body 1 A351 Gr. CF8M CF8, WCB
5
 Body Seal 2 PTFE -
6
 Thrust Washer 1 PTFE + 25% C.F. -
7
 Stem 1 SS316 SS304
8
 Stem Packing Set 1 PTFE -
9
 Gland 1 SS304 -
10
 Disk Spring 2 SS301 -
11
 Handle 1 SS304 C.S. Plated
12
 Handle Nut 1 SS304 C.S. Plated
13
 Handle Cover 1 Vinyl -
14 Nut Stop 1 SS304 -

DIMENSIONS (Inches)

Size D L M H S W P G T E F Wt. Lbs.
1/2" 0.50 2.48 4.40 2.01 0.88 M5 0.50 0.31 0.20 0.81 0.29 0.75
3/4" 0.59 2.72 4.40 2.13 0.88 M5 0.50 0.31 0.20 0.73 0.29 1.00
1" 0.79 3.41 5.00 2.36 1.12 M5 0.75 0.39 0.26 0.91 0.33 1.75
1 1/4" 0.98 3.64 6.10 2.62 1.38 M5 0.88 0.47 0.32 1.14 0.41 2.50
1 1/2" 1.25 4.31 6.10 2.85 1.50 M6 0.94 0.47 0.32 1.14 0.41 3.70
2" 1.50 4.78 7.40 3.43 1.50 M6 0.94 0.55 0.38 1.52 0.57 5.86

Due to continuous product development, information may change without notice.
