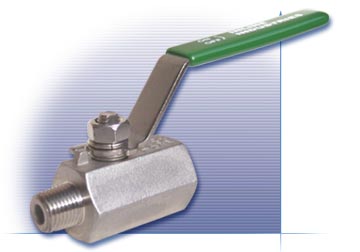

104R Ball Valve: 1-Piece Reduced Port


Product Description

Features and Benefits:

  • Male x Female Connections
    The 104R has been designed with opposing male x female NPT connections in a number of size combinations to eliminate the need for pipe nipples. Thus, decreases the number of potential leak paths and reduces overall length

  • Economical 1-Piece Design
    Compact unibody design delivers outstanding on/off service in a cost effective package

  • Corrosion Resistant Trim
    Stem and ball are made of corrosion resistant stainless steel for trouble free service and long life

  • Blow-Out-Proof Stem
    Stem is bottom loaded to prevent removal during operation



Operating / Test Conditions:

  • Temperature Range (PTFE): -20� to 400� F

  • Maximum Working Pressure (PTFE):
    800 PSI CWP (1/4"-1/2")

  • All valves are shell and seat tested to ANSI/ASME B16.34 and API 598



Pressure & Temperature Chart

(PTFE Seats / Seals)
104R Ball Valve: 1-Piece Reduced Port Pressure and Temperature Chart

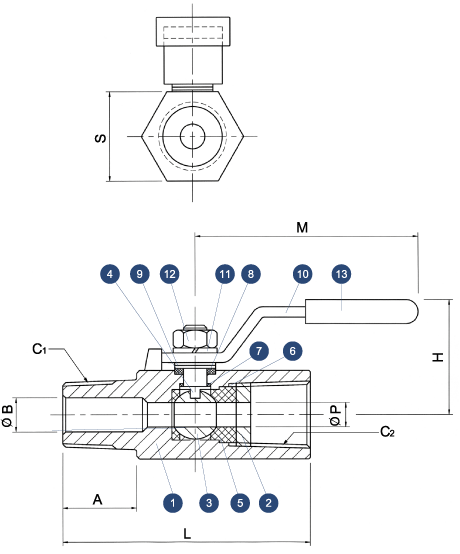

Schematic Diagram

104R Ball Valve: 1-Piece Reduced Port Schematic Diagram


Materials & Measurements

Materials List

Item
Part Name
Material
Qty
1
Body
A351 Gr. CF8M
1
2
Insert
316SS
1
3
Ball
316SS
1
4
Stem
316SS
1
5
Seat
PTFE
2
6
Body Seal
PTFE
1
7
Thrust Washer
RTFE (15% C.F.)
1
8
Stem Packing Set
PTFE
1
9
Packing Gland
304SS
1
10
Handle
304SS
1
11
Split Washer
304SS
1
12
Handle Nut
304SS
1
13
Handle Cover
Vinyl
1

DIMENSIONS (Inches)

Size
C1 x C2
L
P
A
B
 M H S Weight(lbs)
1/4 x 1/4 1.83 0.20 0.59 0.26 1.50 1.25 0.68 0.19
1/4 x 3/8 2.00 0.28 0.51 0.28 2.90 1.45 0.83 0.25
1/4 x 1/2 2.35 0.36 0.59 0.26 1.50 1.65 0.98 0.38
3/8 x 3/8 2.20 0.28 0.60 0.35 2.90 1.45 0.83 0.28
3/8 x 1/2 2.40 0.36 0.60 0.35 3.70 1.65 0.98 0.38
1/2 x 1/2 2.40 0.36 0.70 0.43 3.70 1.65 0.98 0.44

Due to continuous product development, information may change without notice.
