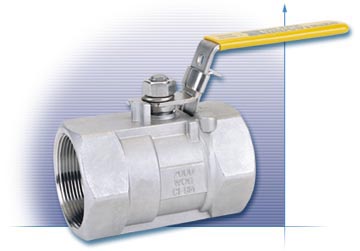

102R Ball Valve: 1-Piece Reduced Port

Product Description

Pressure & Temperature Chart

Schematic Diagram

Materials and Measurements

Click here for a full cut sheet
(PDF format)

Adobe Download Link


Product Description

Features and Benefits:

  • Economical 1-Piece Design

  • High Pressure Construction
    Body and seals designed to perform under greater loads than standard 1-piece ball valves

  • Blow-Out-Proof Stem
    Stem is bottom loaded to prevent removal during operation

  • Independent Packing Gland
    Allows for handle replacement while valve is in service

  • Locking Device
    Enables plant personnel to secure valve in open or closed position when manually operated

  • Corrosion Resistant
    Made of 316 stainless steel (A351 Gr. CF8M) for superior chemical resistance and longer service life

  • Investment Cast
    Improves dimensional control and reduces porosity



Operating / Test Conditions:

  • Temperature Range (RTFE): -20� to 450� F

  • Maximum Working Pressure (RTFE):
    2000 PSI CWP (1/4"-1")
    1500 PSI CWP (1 1/4"-2")

  • All valves are shell and seat tested to ANSI/ASME B16.34 and API 598

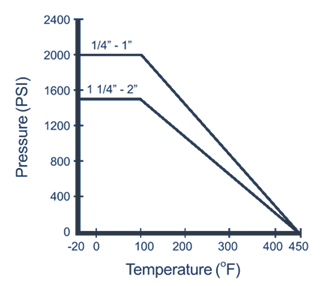

Pressure & Temperature Chart

(RTFE Seats / Seals)

102R Ball Valve: 1-Piece Reduced Port Pressure and Temperature Chart

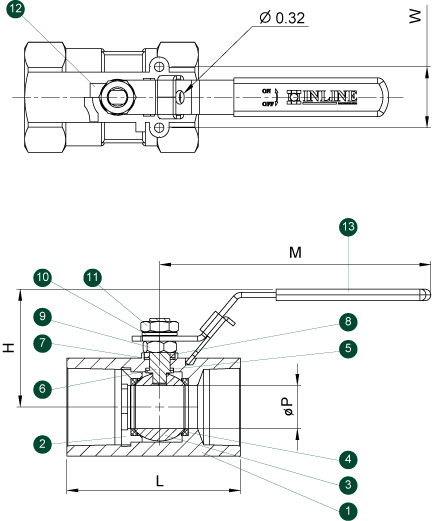

Schematic Diagram

102R Ball Valve: 1-Piece Reduced Port Schematic Diagram


Materials & Measurements

Materials List

Item
Part Name
Material
Qty
1
Body
A351 Gr. CF8M
1
2
Insert
A351 Gr. CF8M
1
3
Ball
A351 Gr. CF8M
1
4
Seat
RTFE ( 15% G.F.)
2
5
Thrust Washer
PTFE
1
6
Stem
316SS
1
7
Stem Packing Set
PTFE
1
8
Packing Gland
304SS
1
9
Conical Spring Washer
304SS
1
10
Lock Washer
304SS
1
11
Handle Nut
304SS
1
12
Handle
304SS
1
13
Handle Cover
Vinyl
1

DIMENSIONS (Inches)

Size
L
P
M
H
 W Weight(lbs)
1/4 2.30 0.36 4.02 1.81 1.11 0.70
3/8 2.30 0.36 4.02 1.81 1.11 0.70
1/2 2.60 0.36 3.82 2.13 1.10 0.61
3/4 2.76 0.49 3.86 2.20 1.10 0.79
1 3.15 0.61 4.09 2.48 1.39 1.39
1 1/4 3.74 0.79 3.98 2.64 1.39 1.97
1 1/2 3.98 0.98 6.14 2.72 1.39 2.76
2 4.49 1.26 6.10 3.03 1.39 4.07

Due to continuous product development, information may change without notice.
