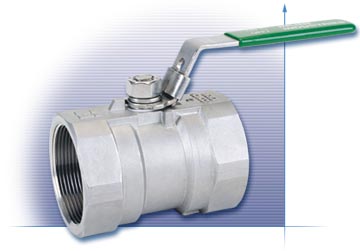

101R Ball Valve: 1-Piece Reduced Port

Product Description

Pressure & Temperature Chart

Schematic Diagram

Materials and Measurements

Click here for a full cut sheet
(PDF format )

Adobe Download Link


Product Description

Features and Benefits:

  • Economical 1-Piece Design
    Our least expensive stainless steel ball valve

  • Blow-Out-Proof Stem
    Stem is bottom loaded to prevent removal during operation

  • Locking Device
    Enables plant personnel to secure valve in open or closed position when manually operated

  • Corrosion Resistant
    Made of 316 stainless steel (A351 Gr. CF8M) for superior chemical resistance and longer service life

  • Investment Cast
    Improves dimensional control and reduces porosity



Operating / Test Conditions:

  • Temperature Range (PTFE): -20� to 400� F

  • Maximum Working Pressure (PTFE): 800 PSI CWP

  • All valves are shell and seat tested to ANSI/ASME B16.34 and API 598

Options:

  • Reverse handle


Pressure & Temperature Chart

(PTFE Seats / Seals)

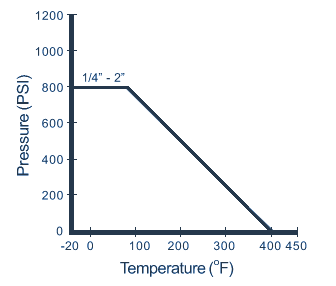

101R Ball Valve: 1-Piece Reduced Port Pressure and Temperature Chart


Schematic Diagram

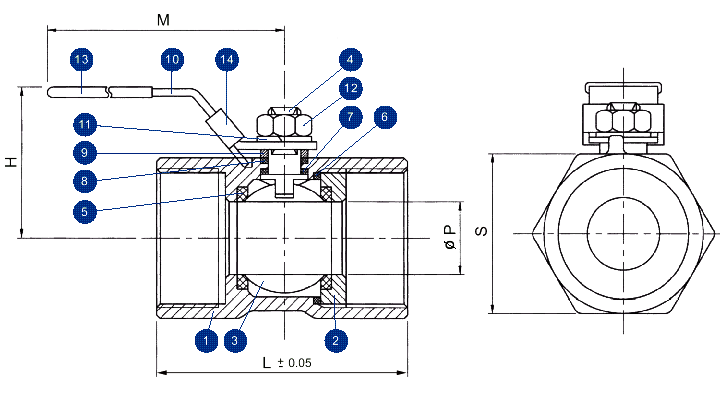

101R Ball Valve: 1-Piece Reduced Port Schematic Diagram


Materials & Measurements

Materials List

Item
Part Name
Material
Qty
1
Body
A351 Gr. CF8M
 1
2
Insert
316SS
 1
3
Ball
316SS
 1
4
Stem
316SS
 1
5
Seat
PTFE
 2
6
Body Seal
PTFE
 1
7
Thrust Washer
RTFE (15% C.F.)
 1
8
Stem Packing Set
PTFE
 1
9
Packing Gland
304SS
 1
10
Handle
304SS
 1
11
Spring Washer
304SS
 1
12
Handle Nut
304SS
 1
13
Handle Cover
Vinyl
 1
14
Locking Device
304SS
1

DIMENSIONS (Inches)

Size
L
P
M
H
S Weight(lbs)
1/4 1.54 0.20 2.91 1.22 0.67 0.13
3/8 1.75 0.28 2.91 1.42 0.83 0.22
1/2 2.20 0.36 3.74 1.61 0.99 0.27
3/4 2.32 0.50 3.74 1.73 1.22 0.47
1 2.75 0.59 4.33 1.89 1.50 0.86
1 1/4 3.08 0.79 4.33 2.13 1.90 1.37
1 1/2 3.20 0.96 5.32 2.56 2.09 1.79
2 3.90 1.25 5.32 2.83 2.67 3.13
