PRODUCTS > 907 Series Globe Valve: 1/2" - 2"

Product Description

Schematic Diagram

Materials and Measurements

Click here for a full Cut Sheet
(PDF format)


Product Description

Standard Features:

  • Investment Casting

  • Screwed-In Bonnet

  • Rising Stem

  • Hand Wheel Operation

  • Thread Connection: ANSI B2.1. BS21, DIN

  • Maximum Working Pressure: 200 PSI

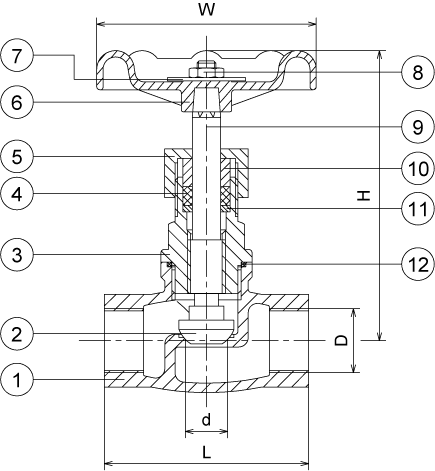

Schematic Diagram


Materials & Measurements

Materials List

Item
Part Name
Standard Materials Qty
1
Body A351 Gr. CF8M 1
2
Core AISI 316 1
3
Bonnet A351 Gr. CF8M 1
4
Packing PTFE 1
5
Gland Nut AISI 304 1
6
Handle Wheel Aluminum 1
7 Name Plate Aluminum 1
8 Nut AISI 304 1
9 Stem AISI 316 1
10 Metal Padding AISI 304 1
11 Washer AISI 316 1
12 Seal PTFE 1

DIMENSIONS (Inches)

Size D W H L d
1/2" 0.59 2.76 4.21 2.56 0.59
3/4" 0.79 2.76 4.49 2.95 0.79
1" 0.98 4.49 5.16 3.54 0.98
1 1/4" 1.26 4.49 5.67 4.13 1.26
1 1/2" 1.57 3.94 6.46 4.65 1.57
2" 1.97 3.94 6.93 5.43 1.97
