PRODUCTS > 337C Instrumentation Ball Valve: 3-Piece Compression Ends: ISO 5211 Direct Mount Pad

Product Description

Pressure & Temperature Chart

Schematic Diagram

Materials and Measurements

Click here for a full cut sheet
(PDF format)


Product Description

Features and Benefits:

  • Made of Corrosion-Resistant 316L SS (A-351 Gr. CF3M)
    One valve can be used for many service conditions
  • ISO 5211 Direct Mount Pad
    No bracket or drive coupling needed for automation
    Eliminates exposed moving parts for safer work environment
    Improves actuator positioning and prevents side loading of the stem seal
  • High-Cycle, Live-Loaded Stem Packing
    Ensures tight seal
    Extends service life

  • O-Ring Stem Bearing
    Maintains stem alignment
    Reduces packing side loading and wear Enhances stem seal

  • Blow-Out-Proof Stem
    Stem is bottom loaded to prevent removal when valve is in service

  • 3-Piece Swing-in-Place Construction
    Easy to repair in service line

  • Locking Device
    Enables plant personnel to secure valve in open or closed position when manually operated

  • Silver Plated Nut
    Reduces galling on threads

  • Heat Treated Ferrules
    Assures continuous tight seals

The 337C Compression Ends ball valve incorporates several innovative design features for improved performance.  The valve's uniform bore diameter improves flow characteristics and eliminates pooling of potential contaminants.  Roll burnishing and polishing all 316L stainless steel internal surfaces reduces surface porosity and improves finish.  The ISO 5211 mounting pad allows for direct mounting of most actuators.

Operating / Test Conditions:

  • Temperature Range (TFM seats): -20 to 450 F

  • Maximum Working Pressure (TFM seats):
    1000 PSI CWP (1/4" - 1")

  • Valves inspected and tested to API 598 and meet MSS SP-61 seat leakage requirements

  • All materials comply with applicable ASTM material specifications, and FDA, USDA requirements

  • All soft wetted parts comply with FDA CFR Title 21 Part 177
  • Material test reports available upon request

Options:

  • Clamp, tube butt weld, extended tube butt weld ends

  • Polish and Electro-polish to custom specification

  • Cavity filled seats

  • True Drain CIP

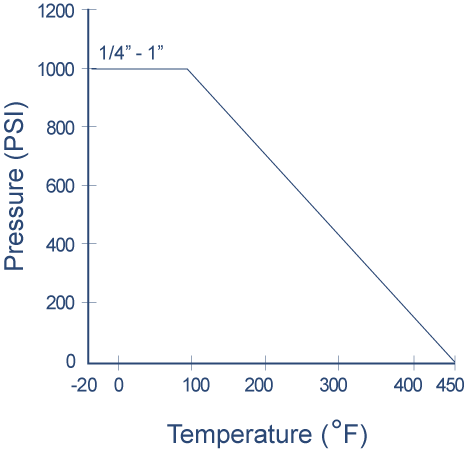

Pressure & Temperature Chart

(TFM Seats)

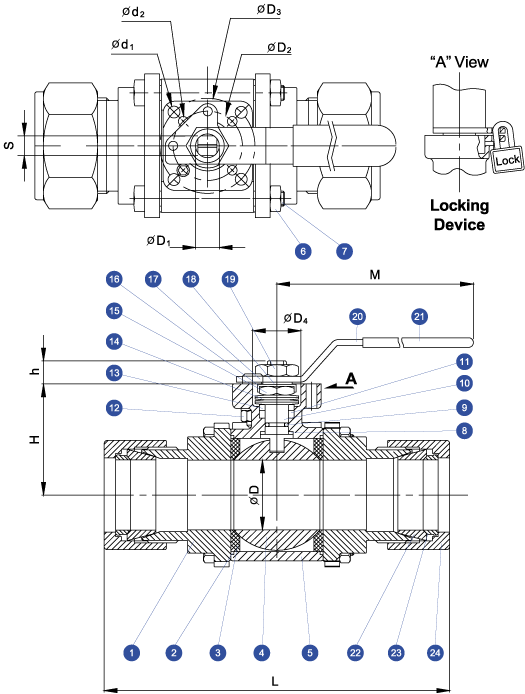

Schematic Diagram


Assembly and Reassemble Instruction

Assembly Instruction

1. Insert the tubing until it rests against the counter bored pipe end

2. Be sure the nut is finger tight, then tighten with wrench an additional 1-1/4 turn

Reassemble Instruction

1. Insert the tubing end with the previously set ferrules into the pipe end

2. Tighten nut by hand. Rotate nut to the original position with a wrench. (An increase in resistance will be encountered at the original position) Then tighten slightly with the wrench




Materials & Measurements

Materials List

Item
Part Name
Material
Qty
1
End Cap
A351 Gr. CF8M
2
2
Body Seal
TFM
2
3
Seat
TFM
2
4
Ball
316L SS
1
5
Body
A351 Gr. CF3M
1
6
Body Nut
304SS
4
7
Body Bolt
304SS
4
8
Thrust Washer
PEEK
2
9
Stem O-Ring
Viton 90
1
10
Stem
316L SS
1
11
Stem Packing Set
TFM
1
12
Stop Pin Nut
304SS
1
13
Packing Gland
304SS
1
14
Belleville Washer
301SS
2
15
Stem Nut
304SS
1
16
Gland Nut
304SS
2
17
Stop Pin Bolt
304SS
1
18
Space Washer
304SS
1
19
Handle Nut
304SS
1
20
Handle
304SS
1
21
Handle Cover
Vinyl
1
22
Front Ferrule 316SS 2
23
Back Ferrule 316SS 2
24
Locking Nut 316SS 2




DIMENSIONS (Inches)

Size
L
D
D1
D2
D3
D4
d1
d2
M
H
h
S
1/4
3.39
0.38
0.47
1.42
1.65
0.98
0.24
0.24
5.32
1.54
0.35
0.35
3/8
3.55
0.38
0.47
1.42
1.65
0.98
0.24
0.24
5.32
1.54
0.35
0.35
1/2
3.88
0.38
0.47
1.42
1.65
0.98
0.24
0.24
5.32
1.54
0.35
0.35
3/4
3.88
0.62
0.47
1.42
1.65
0.98
0.24
0.24
5.32
1.54
0.35
0.35
1
4.60
0.87
0.55
1.65
1.97
1.18
0.28
0.24
6.30
1.88
0.43
0.43

*Direct mount with stem adapter bushing
